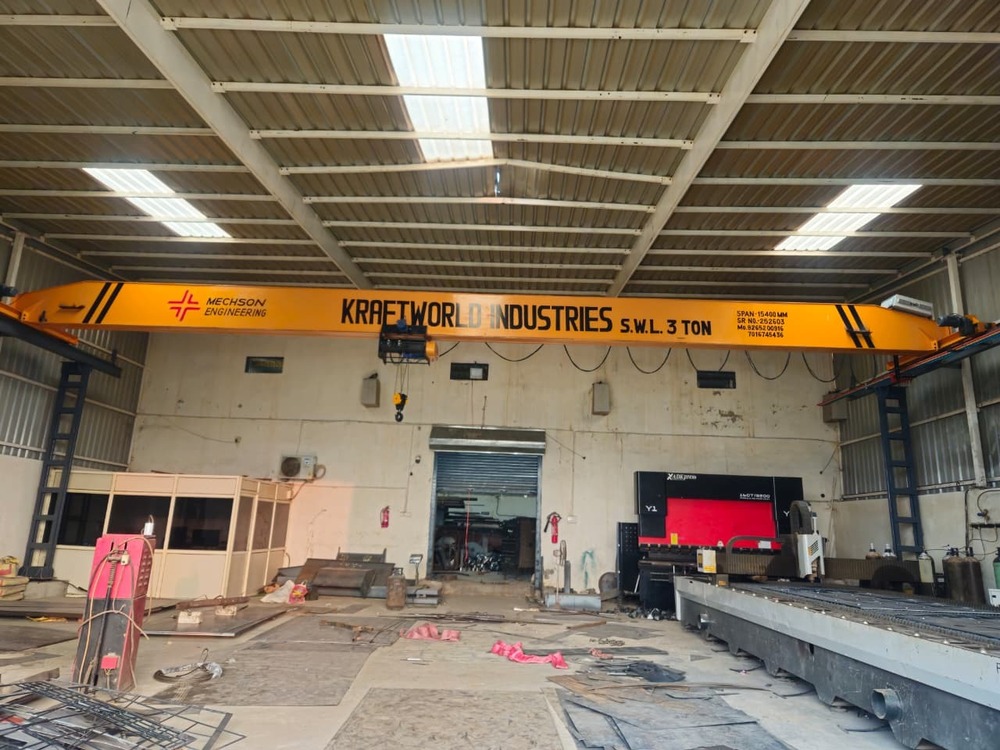

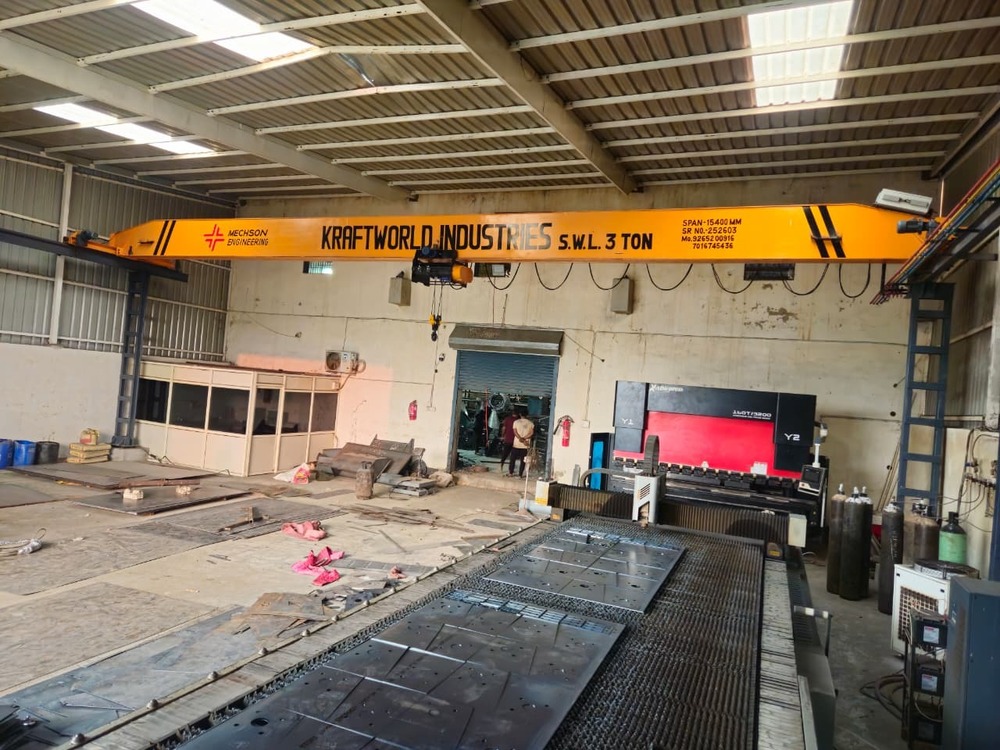

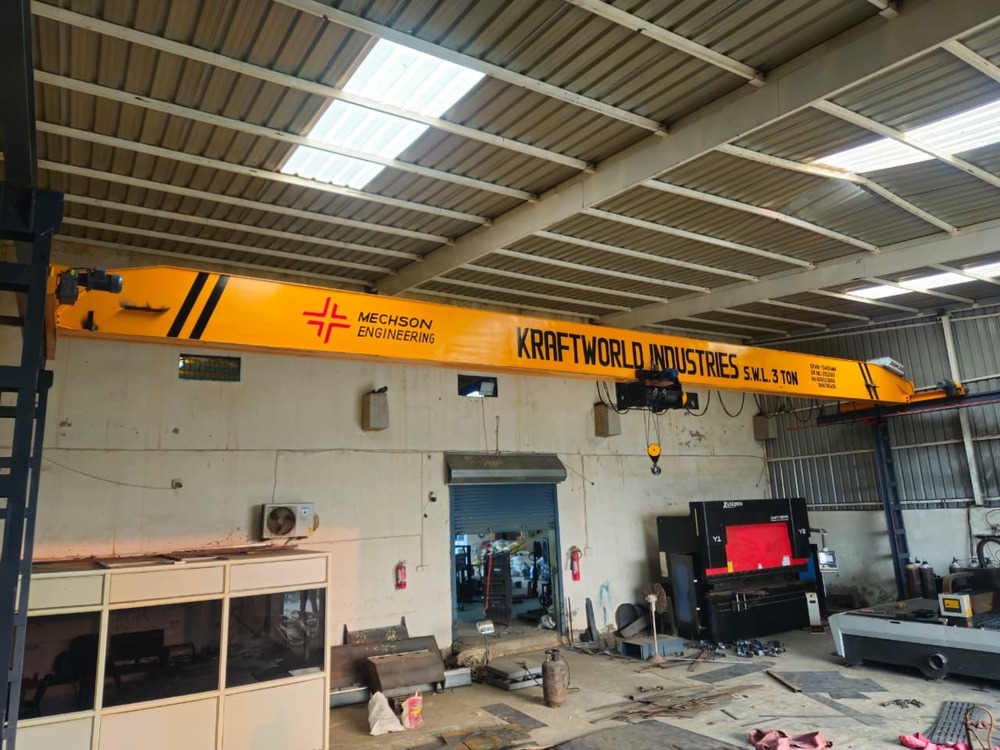

Single Girder Electric OverHead Travelling Crane

About Single Girder Electric OverHead Travelling Crane

The Single Girder Electric Overhead Traveling (EOT) Crane is a reliable and cost-effective material handling solution designed for light to medium-duty applications. Engineered for efficiency, safety, and smooth operation, it is widely used in workshops, warehouses, manufacturing units, and assembly lines.

Capacity Range:
Available in lifting capacities from 1 Ton to 20 Ton, making it suitable for a wide range of industrial applications.

Span Range:
Customizable span from 2“3 meters up to 30 meters, ensuring flexibility to fit different facility layouts.

Key Features & Technical Specifications:

•   Compact Design: Lightweight structure with optimized headroom, ideal for facilities with space constraints.
•   Girder Construction: Fabricated from high-quality steel plates or rolled sections, ensuring durability and strength.
•   Hoisting Mechanism: Equipped with electric wire rope hoist or chain hoist for smooth and precise lifting.
•   Duty Class: Designed as per IS/ISO standards (typically Class II / Class III duty depending on application).
•   Lifting Height: Customizable as per customer requirements.
•   Travel Mechanism: Smooth cross travel and long travel with precision-machined wheels and geared motors.
•   Speed Options: Single or dual-speed hoisting and travel, with VFD (Variable Frequency Drive) option for controlled operations.
•   Power Supply: 3-phase, 415V, 50Hz (customizable based on region).
•   Control System: Available with pendant control or wireless radio remote control for ease of operation.
•

• Safety Features:
  •   Overload protection system
  •   Limit switches for hoisting and travel motions
  •   Emergency stop button
  •   Anti-collision device (optional)
  •

• Finish: Corrosion-resistant paint with primer and enamel coating for long service life.
•


Applications:

•   Warehouses and storage facilities
•   Engineering workshops
•   Assembly lines
•   Small to medium manufacturing plants
•


This Single Girder EOT Crane ensures high performance, low maintenance, and long operational life, making it an ideal choice for efficient material handling in various industrial environments.
